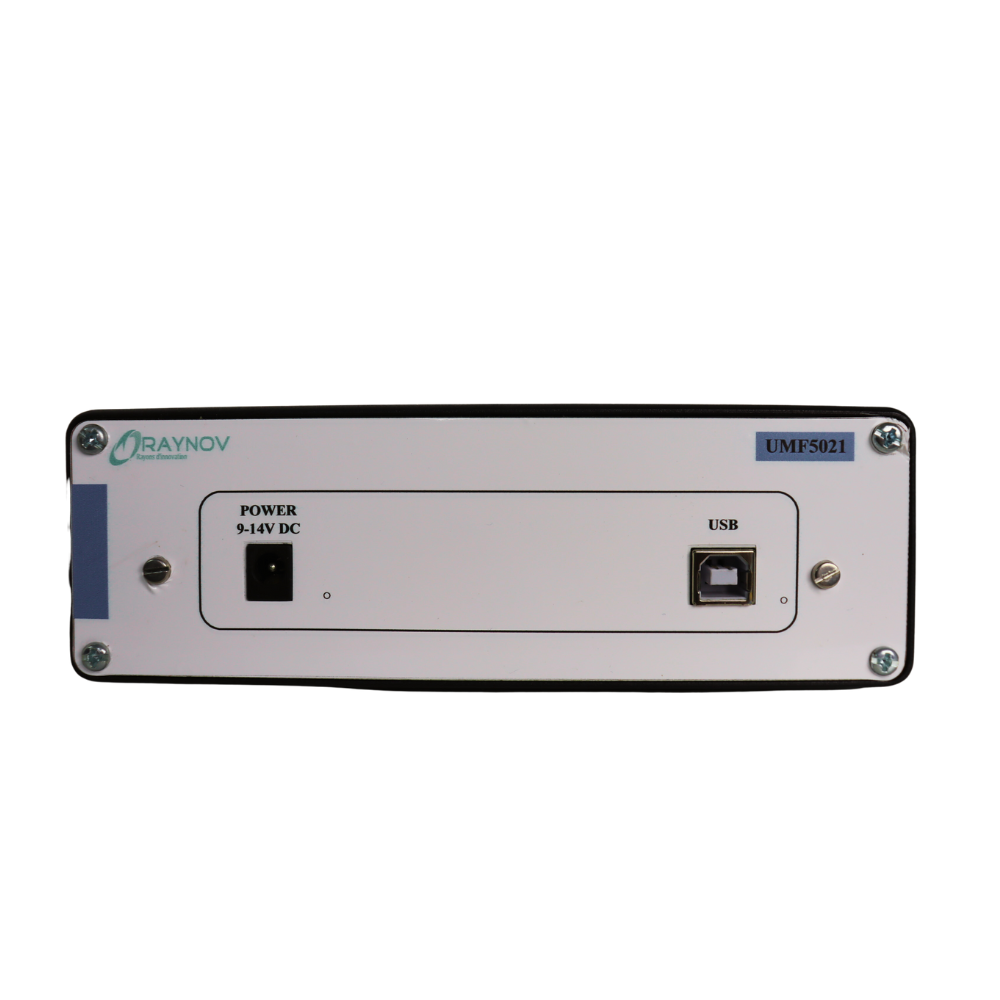

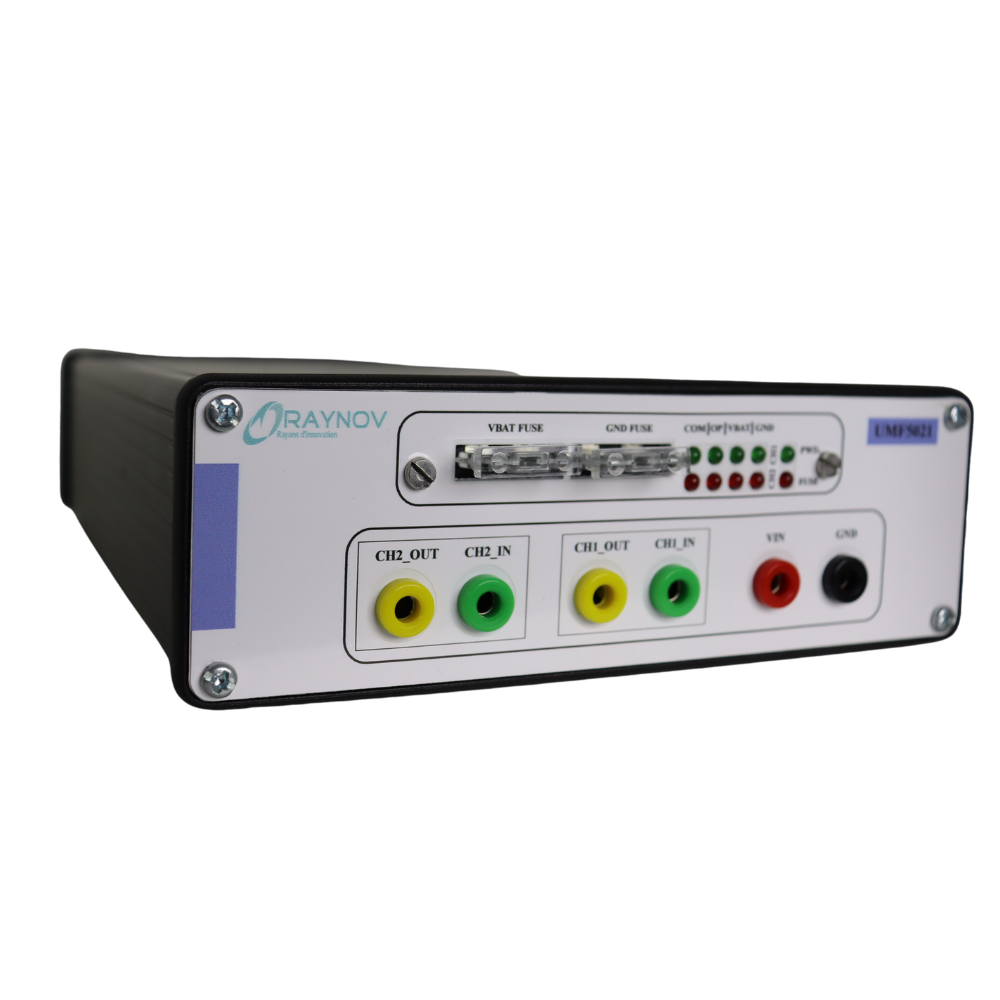

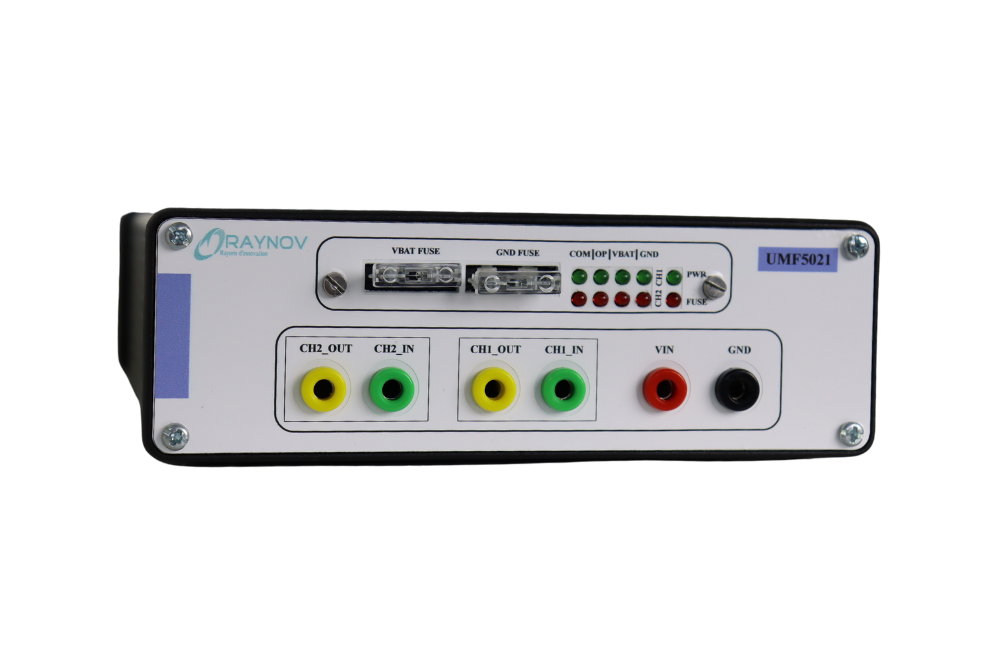

MiniFIR UMF5021

Raynov provide a comprehensive range of fault insertion I/O modules such as the miniFIR UMF5021, these modules are specifically designed for safety critical applications, often in aerospace or automotive industries.

The miniFIR UMF5021 is Fault Injection Module purpose-built for electronic device testing with two channels, dedicated to injecting distinct electrical fault conditions, such as Open Circuit, Short to Ground (GND), and Short to Voltage Input (VIN).
The miniFIR UMF5021 is equiped with internal PWM frequency and voltage measurement capabilities.
The connection to the device via USB is made using of FTDI technology, ensuring high-quality and efficient communication.

Product features

Parameters

Values

min                 max

Unit

Number of channels 2

Channels Voltage

5                         25

V DC

Power Supply

9                        14

 V DC

Measuring PWM Frequency

0.02                     200

Khz

 Measuring voltage range

5                             25

V DC

Relays Response time

80 ms

Channels Peak current

30 (8ms)

A

Continuous channel current

15 A

Galvanic Isolation

Up to 3000

V
